Features
01
원심분리보다 우수한 데이터 품질 획득 및
뛰어난 세포 보존 가능
02
연구 및 실험자 간의 데이터 편차 감소를
통한 더 높은 수준의 재현가능성
03
stain index 개선으로 보다 선명한 data resolution 확보
04
세포 응집의 감소로 유세포 장비 사용시 편리
05
3분 이내에 96개의 샘플을 처리할 수 있는 신속한 워크플로우
06
에어로졸의 감소로 실험자의 안전확보 및
생물안전작업대에 설치 가능한 크기
Technical specifications
| 전압 요구 사항 | 전력 소비량 | 치수 | 무게 |
|---|---|---|---|
| 100 - 240V | 24V / 3.0A | 310mm H x 262mm W x 302mm D 12.2 in H x 10.3 in W x 11.9 in D |
14kg (31lbs) |
Accessories and components
| Laminar Wash™ 96-well plate (with a regular lid) |
Laminar Wash™ 96-well plate (with a regular lid) *Customised |
HT Buffer Exchanger 5 | HT Buffer Exchanger 10 |
|---|---|---|---|
| 96-DC-CL-05 | 96-DC-CL-05 | DC-BX-01-05 | DC-BX-01-10 |
Scientific data
Laminar Wash™는 세포 보존(retention)이 탁월하며 더 명확한 데이터를 제공합니다.

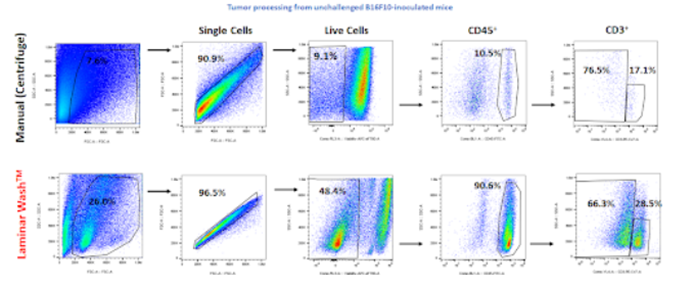

When performing cell dissociation in tumor bearing tissues, the tissue debris and enzymatic-induced fragments are primary factors affecting cell recovery for tumor infiltrating lymphocytes. For more invasive and immunologically challenging models, like B16F10-inoculated mice, recovery of limited numbers of TILs reduces chances for accurate characterization.
The results shown here were demonstrated with an unchallenged mouse sample and the Laminar Wash technology.
Laminar washing (with 1,000,000 tumor infiltrate cells) reveals increased viable cell count and reduced debris effects by laminar washing.
The cleaner sample preparation increases lymphocyte recovery up to 90.6% as compared to centrifuge-harsh washing of 10.5%.

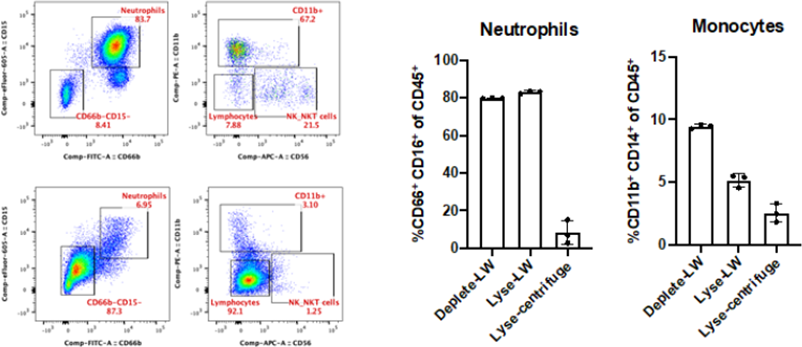

Laminar wash™는 호중구(neutrophils) 및 단핵구(monocytes)의 보전으로
진일보한 감별 혈구계산(differential blood count)법을 선보입니다.
Human red blood cells (RBCs) lysed with (NH4Cl) and washed using HT2000 Laminar Flow technology (top) show better cell retention and tighter cell populations than RBCs lysed and washed using centrifugation on samples in tubes (bottom), whether enumerated by CD45 staining or FSC-SSC scattering.
